Multi-Storey Buildings
Multi-Storey Buildings
Category Lead Tagline: Deep Foundation Telemetry, High-Density SPT Metrology, and Subsurface Stratification for High-Rise Structural Stability
Category Overview Narrative
Vertical urban expansion requires comprehensive subsurface certainty. Multi-storey commercial towers, high-rise residential complexes, and deep underground basements exert immense static and dynamic loads on underlying geological strata. Designing safe deep-bored piles, heavy raft foundations, and basement shoring systems requires precise mapping of soil strength, compressibility, and bedrock socketing depths.
Bayleys Environmental Services (Pvt) Ltd. delivers specialized geotechnical investigations for high-rise developments across Sri Lanka. Combining high-torque core drilling with calibrated in-situ Standard Penetration Testing (SPT) and laboratory consolidation analysis, we eliminate differential settlement risks and optimize foundation costs for structural engineers and property developers.

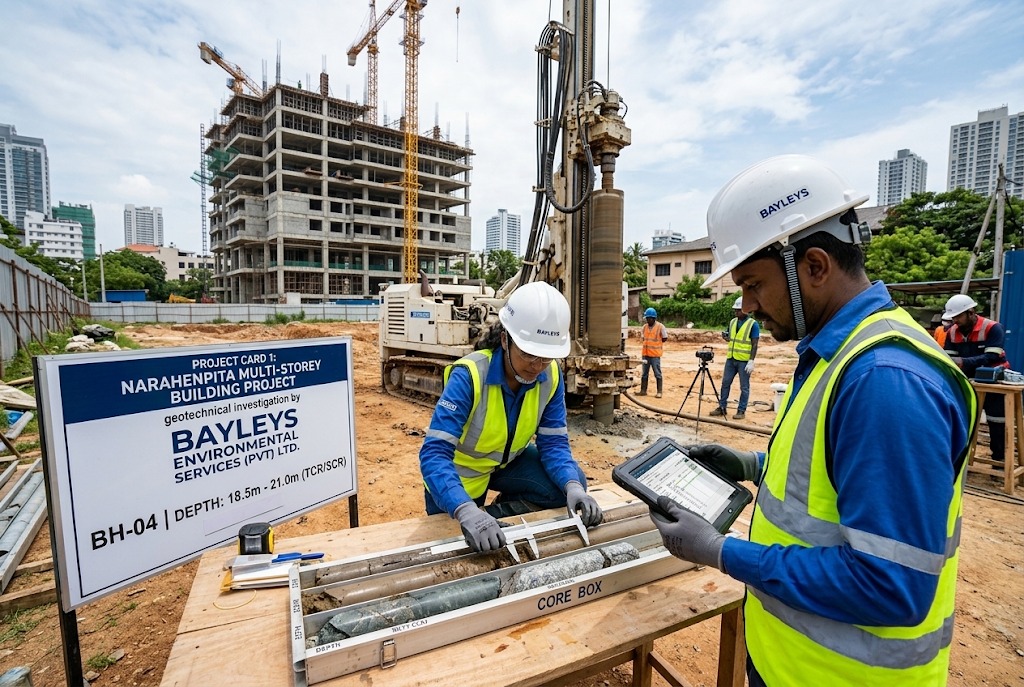

- Project Card 1: Narahenpita Multi-Storey Building Project
Card 1 Title: Narahenpita Multi-Storey Infrastructure – 07 Deep Foundation Boreholes
Client: Foundation and Waterwell Engineering (Pvt) Ltd.
Location: Narahenpita, Colombo, Sri Lanka
Card 1 Summary Excerpt: High-depth geotechnical investigation comprising 07 continuous exploratory boreholes with dynamic in-situ SPT metrology, establishing bedrock socketing baselines and allowable bearing pressures for multi-level foundation design.
Card 1 Button: Read More →
Detailed Case Study Content (For 'Read More' Page View):
- Project Background & Objective: Construction of a modern multi-storey commercial development in urban Colombo requiring deep foundation piles to transmit high column loads safely into sound bedrock.
- Geotechnical Scope of Work: Executed 07 deep exploratory boreholes extending through overburden soils into crystalline bedrock. Conducted continuous Standard Penetration Tests (SPT) at 1.0 m intervals and recovered rock cores with triple-tube barrels to determine Rock Quality Designation (RQD) and weathering profiles.
- Laboratory Testing & Analysis: Performed soil index property testing, Atterberg limits, and unconfined compressive strength (UCS) testing on rock core specimens to evaluate bearing capacity and rock mass modulus..
- Engineering Outcome: Delivered comprehensive borehole logs and definitive geotechnical recommendations specifying pile socketing depths into Grade I/II bedrock, optimizing pile lengths and eliminating differential settlement risks.
- Project Card 2: Kerawalapitiya Commercial Complex
Card 2 Title: Kerawalapitiya Commercial Complex – Soil Bearing & Stratification Mapping
Client / Sector: Commercial & Industrial Development Sector
Location: Kerawalapitiya, Western Province, Sri Lanka
Card 2 Summary Excerpt: Geotechnical exploration across 06 strategic borehole locations, mapping soft coastal soils, loose alluvial sand layers, and groundwater tables to guide foundation selection and ground improvement.
Card 2 Button: Read More →
Detailed Case Study Content (For 'Read More' Page View):
- Project Background & Objective: Development of a commercial facility in coastal terrain characterized by variable alluvial sands, soft clay seams, and high water tables.
- Geotechnical Scope of Work: Completed 06 deep boreholes with continuous field SPT metrology, undisturbed tube sampling, and groundwater table monitoring.
- Technical Evaluation: Evaluated soil compressibility through laboratory Oedometer consolidation testing and analyzed potential liquefaction susceptibility under seismic conditions.
- Engineering Outcome: Provided clear structural design parameters for continuous raft foundation systems and ground improvement guidelines, preventing post-construction settlement.
